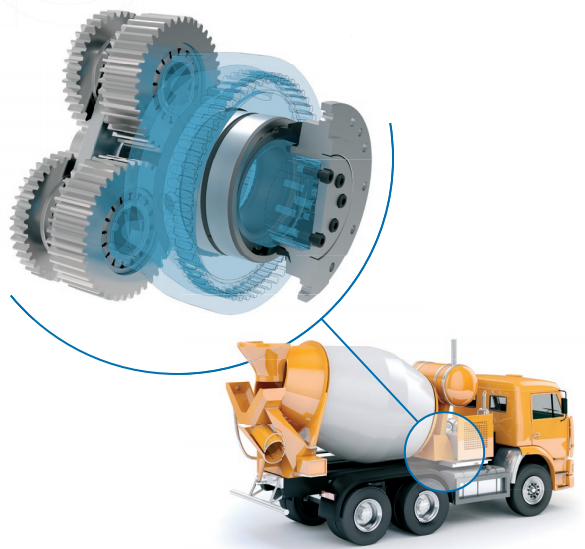

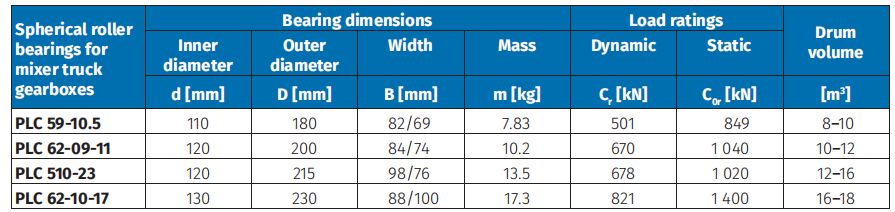

The planetary gearbox is a key part of a concrete mixer truck. It transmits torque from the hydraulic motor to the drum with its gear  ratio of 100–150. The maximal output torques of such gearboxes are in a range of 80 000 Nm and the maximal input revolutions are 2 500 rpm. As the gearbox is a critical part of concrete mixer truck, its main bearing is considered as the heart of gearbox. Especially in this application due to the demanding operating conditions.The angle of misalignment is of ±4 ° and the equivalent load applied on the main bearing reaches up to 60 % of the bearing dynamic load rating when the truck descents and slows down. To be able to take care of such a huge misalignment, the outer ring of the bearing has a greater width than the inner one and, to facilitate the bearing´s assembly, the outer ring is split. ZKL developed for this application a special series of bearings.
行星齿轮箱是混凝土搅拌车的关键部件。它将扭矩从液压马达传输到传动比为100–150的滚筒。这种变速箱的最大输出扭矩为80000nm，最大输入转速为2500rpm。由于变速箱是混凝土搅拌车的关键部件，其主轴承被认为是变速箱的心脏。特别是在这种应用中，由于工作条件要求很高，当卡车下降和减速时，失调角为±4°且施加在主轴承上的等效载荷达到轴承额定动载荷的60%。为了能够处理如此大的偏差，轴承外圈的宽度比内圈大，为了便于轴承的装配，外圈是分离的。ZKL为这种应用开发了一系列特殊的轴承。
